Description

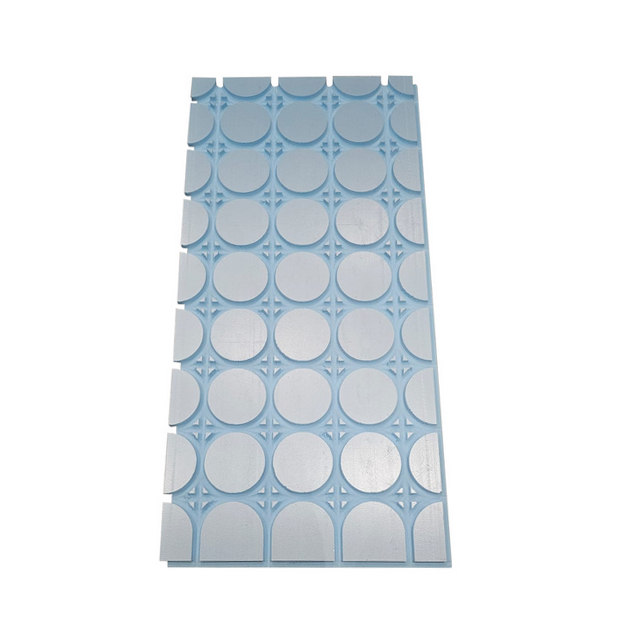

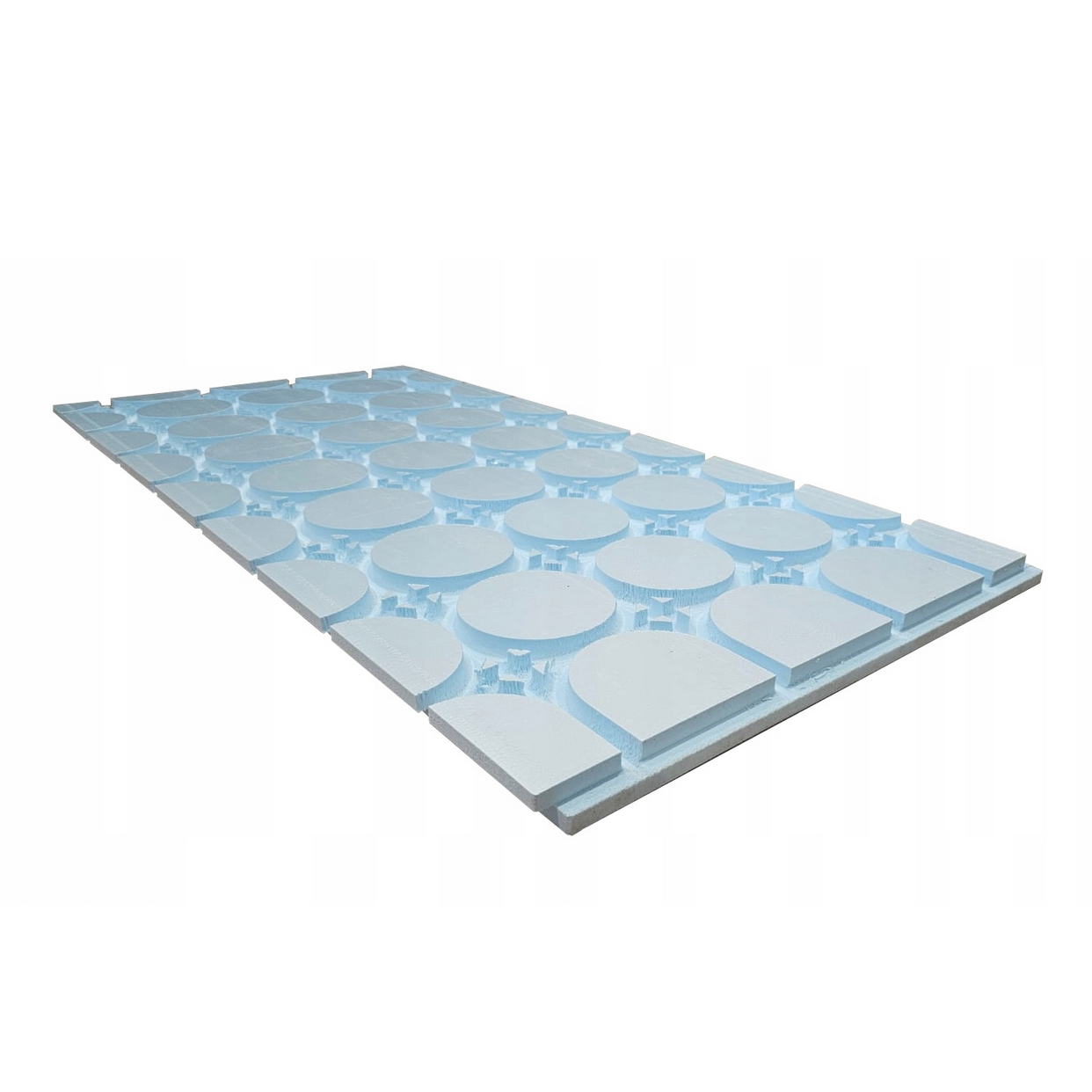

Twist-lock system panels for underfloor heating – MANUFACTURER: BEFIRO
At BEFIRO, we specialize in the production of professional XPS 300 system panels for hydronic floor heating.
Our panels offer:
- Excellent thermal insulation
- Even heat distribution
- Energy savings and lower operating costs
- Customization options available
We handle the entire process—from milling to packaging—ourselves, which allows us to ensure consistent quality and fast turnaround.
TECHNICAL SPECIFICATIONS (standard)
| Dimensions: | 1250 x 600 mm |
| Thickness: | 30 mm |
| Material: | XPS 300 |
| Fire reaction class: | E-flame-retardant |
| Version: | raw board, milled edge |
| Area of a single panel: | 0.75 m² |
| Joining: | tongue-and-groove |
| Status: | new, ready for installation |
| Thermal conductivity coefficient λD: | 0.033 W/m·K |
| Thermal resistance Rd: | 0.9 m²·K/W |
| Compressive strength (CS(10)): | ≥ 300 kPa |
| Spacing of the grooves for the heating tubes: | 15cm |
| Compatible pipes: | 16 mm (standard floor heating) |
APPLICATIONS OF BEFIRO SYSTEM PANELS
BEFIRO system panels made of XPS 300 are a proven solution for installing water-based underfloor heating in a wet system. They are suitable for both new construction projects and renovation projects.
Where can BEFIRO panels be used:
Thanks to their high strength and insulating properties, the panels are suitable for both residential and utility spaces.
- single-family homes and apartments
- offices, production facilities, warehouses
- commercial spaces and public facilities
- Underfloor heating for cement and anhydrite screeds
- installations on the ground, reinforced concrete slabs, or self-leveling screeds
Manufacturer
Fras Design, LLC
7 Szronowa St.
53-023 Wrocław
